Support and troubleshooting teams
Useful when staff must capture a real issue exactly as it happened, send a replay to a colleague or developer, and reduce misunderstanding during bug reporting, client support, or internal diagnosis.
Noesia Smart Waiter / Module Documentation
Pro Event-Driven IoC Isolated/X-Core Micro-Frontend Secure Browser Capture
SCREEN RECORDER
Screen Recorder is the secure capture workspace of Noesia Smart Waiter. It allows teams to record their screen directly from the browser, manage recordings inside a dedicated video library, control playback and downloads, create protected share links, and keep evidence, support material, audits, training clips, and operational walkthroughs inside a controlled self-hosted environment rather than scattering sensitive recordings across random external tools.
Who is it for
Built for teams that need proof, clarity, and controlled visual communication
Operations, training, and onboarding owners
Useful for short process walkthroughs, internal guidance clips, staff training, and repeatable “this is how it works” explanations without holding long live calls every time.
Managers, auditors, and decision makers
Useful when the business needs visual proof, action history, controlled sharing, and an easy way to preserve context before a case is escalated or archived.
Main Features
What the Screen Recorder module actually delivers
Direct browser-based recording
- Record directly from the browser without needing a heavy external desktop suite.
- Works around secure browser capture logic instead of improvised uploads from unknown tools.
- Designed for fast operational recording rather than bloated production editing.
Multiple capture surfaces
- Supports monitor-level, window-level, and browser-tab capture depending on the share surface selected by the user.
- Useful for full demonstrations, targeted task proof, or minimal-scope troubleshooting.
- Actual surface information can be reflected back as part of the capture diagnostics.
Audio-aware recording control
- Audio source modes include None, Microphone, System Audio, or Microphone + System Audio.
- Gives teams flexibility for narration, app-sound proof, or mixed explanation clips.
- Browser capability and selected surface affect what audio is truly available.
Capture preferences before recording
- Choose target resolution such as Native, 720p, or 1080p.
- Enable or disable cursor visibility according to the presentation need.
- Set a maximum duration limit such as 5, 10, or 15 minutes for discipline and storage control.
Live control state while recording
- Clear recording status, countdown, live state, and floating control behavior.
- Pause and stop actions support practical browser-side control.
- Helps users understand whether the recorder is idle, recording, finalizing, saved, or failed.
Actual capture diagnostics
- Shows actual format, actual resolution, actual FPS, and actual capture surface after the browser grants recording.
- Useful for validating whether the final recording matched the operator’s expectation.
- Reduces confusion between preferred settings and real browser-granted output.
Video library with practical actions
- Dedicated library tab for reviewing saved recordings.
- Protected preview, download original, rename, delete, and secure-link sharing actions.
- Useful for keeping recordings organized inside one operational workspace.
Secure expiring share links
- Copy secure link flow for controlled sharing.
- Useful when a teammate, client, or developer needs access without opening the full admin environment.
- Supports a more privacy-conscious workflow than dumping clips in random public tools.
Chunked saving and storage awareness
- Built around chunk-aware saving logic and storage-sensitive handling.
- Better suited to real administration than naïve “record forever and hope for the best” behavior.
- Supports a cleaner self-hosted recording pipeline.
System and server readiness insight
- Surfaces system info such as upload_max_filesize, post_max_size, memory_limit, and max_execution_time.
- Checks browser API readiness and HTTPS context expectations.
- Helps teams understand whether the environment is actually ready before blaming the recorder.
How to Access It
Where Screen Recorder lives inside the platform
Admin path: open the Noesia Smart Waiter admin shell and select Screen Recorder from the module navigation.
Tier: this module belongs to the Pro layer.
Main working areas: the module is typically organized around Record, Video Library, and Settings & Info.
Setup / Configuration
Recommended setup before your team starts recording operational evidence
Confirm secure browser context
Screen recording should be treated as a secure browser feature. Confirm the admin environment is running under HTTPS and that the browser actually supports the capture APIs needed for recording.
Choose your capture profile
Pick the right default approach for your team: screen or tab, with or without cursor, with or without microphone, and a reasonable max duration so recordings stay useful instead of chaotic.
Review server limits
Before recording a large batch of clips, inspect the system info panel and verify upload_max_filesize, post_max_size, memory_limit, and execution thresholds are sensible for your environment.
Set a privacy-first usage rule
Decide internally what your team is allowed to record, share, or retain. The module is powerful, so responsible use and controlled data handling should be part of the operating policy from day one.
How to Use It
Typical flow from first capture to secure share
Open the Record tab
Review your current preferences first so the operator knows the intended resolution, audio mode, cursor behavior, and duration limit before recording begins.
Choose the browser share surface
Select the exact monitor, window, or browser tab you want to capture. Keep the surface narrow when privacy matters and broader only when the full context is necessary.
Record, pause, and stop cleanly
Use the live control state to monitor whether the session is idle, recording, or finalizing. Pause when needed, then stop when the proof or walkthrough is complete.
Review the library entry
Open the Video Library and confirm the saved clip, preview quality, format, duration, and storage footprint before you share it with anyone else.
Download or copy a secure link
Use Download Original for direct archive needs or Copy Secure Link when another person needs controlled access to the clip without full administrative exposure.
Screens / Interface Guide
The interface areas that matter most in Screen Recorder

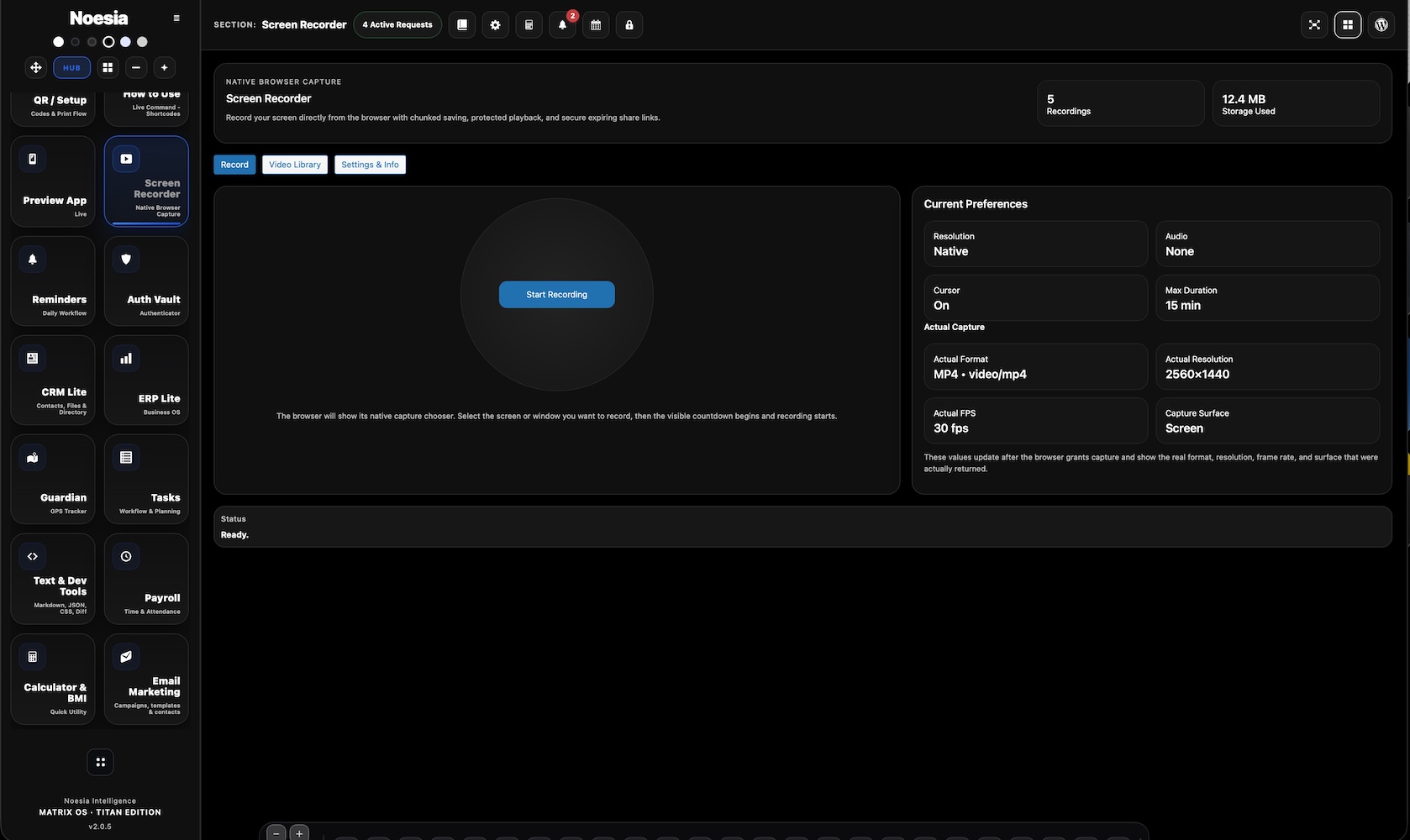

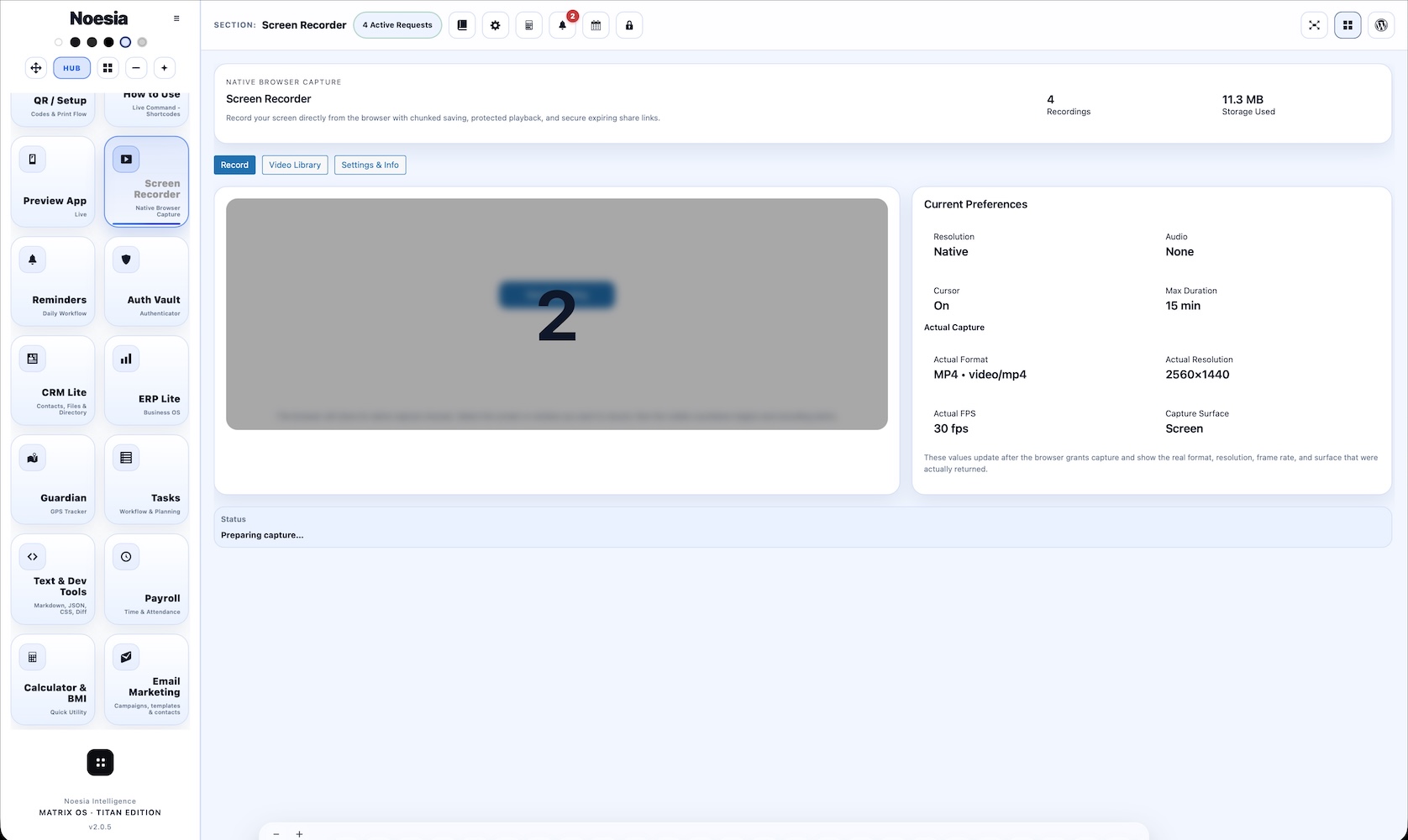

Record stage
The main recording area handles the start action, countdown, live state, and the feeling of “this is being captured right now.” It is the operational heartbeat of the module.
Current Preferences summary
This summary shows the expected configuration before the session starts: resolution, audio mode, cursor, and max duration. It helps reduce accidental bad captures.
Actual Capture diagnostics
This area matters because browsers do not always grant exactly what the operator expected. Real format, real FPS, real surface, and real resolution make troubleshooting more honest.
Floating live controls
Pause and Stop are practical, not decorative. When teams are recording an issue, they need immediate control, not hidden steps after the fact.

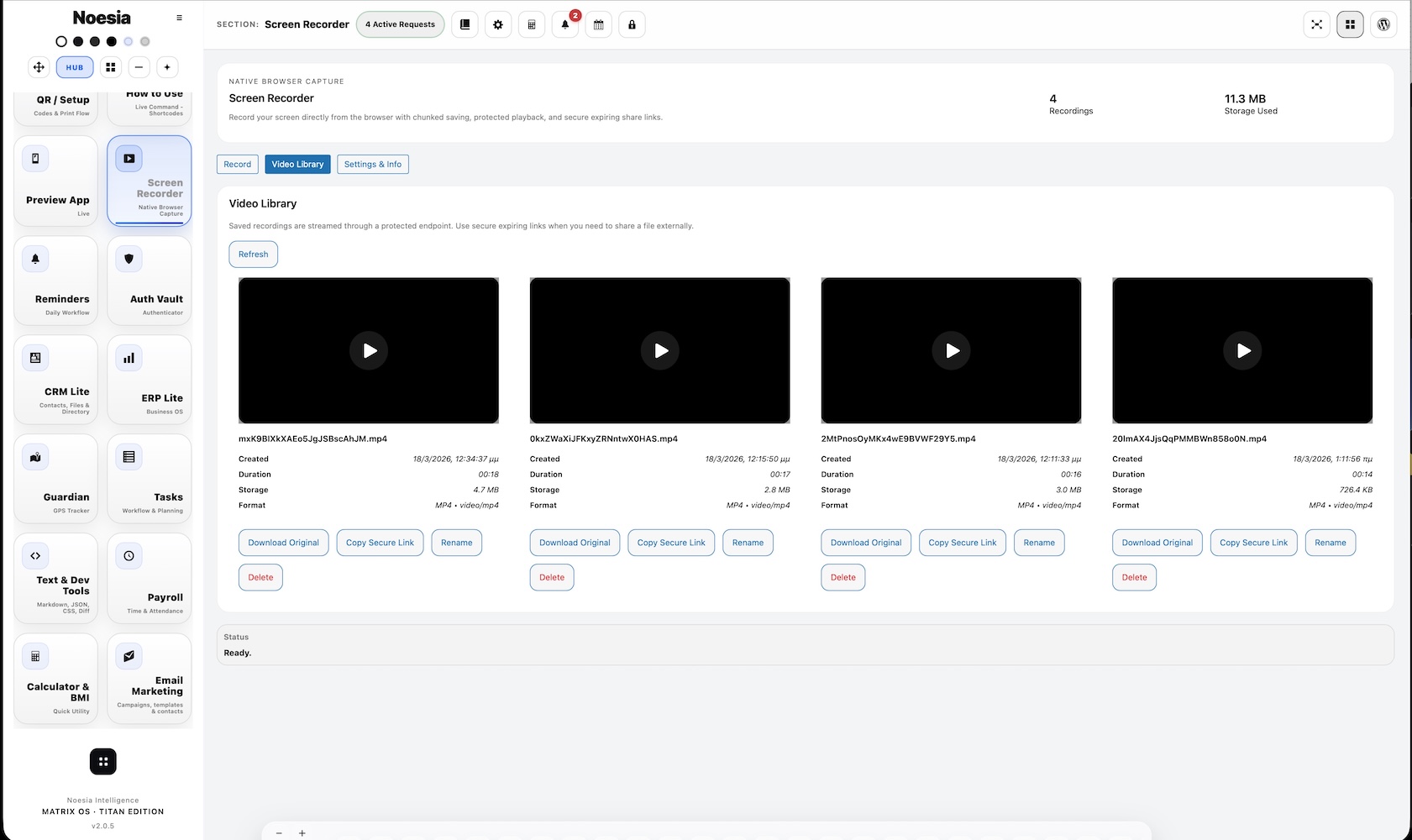

Video Library
The library is where recordings become manageable assets rather than temporary browser events. Preview, rename, delete, download, and secure sharing all live here.

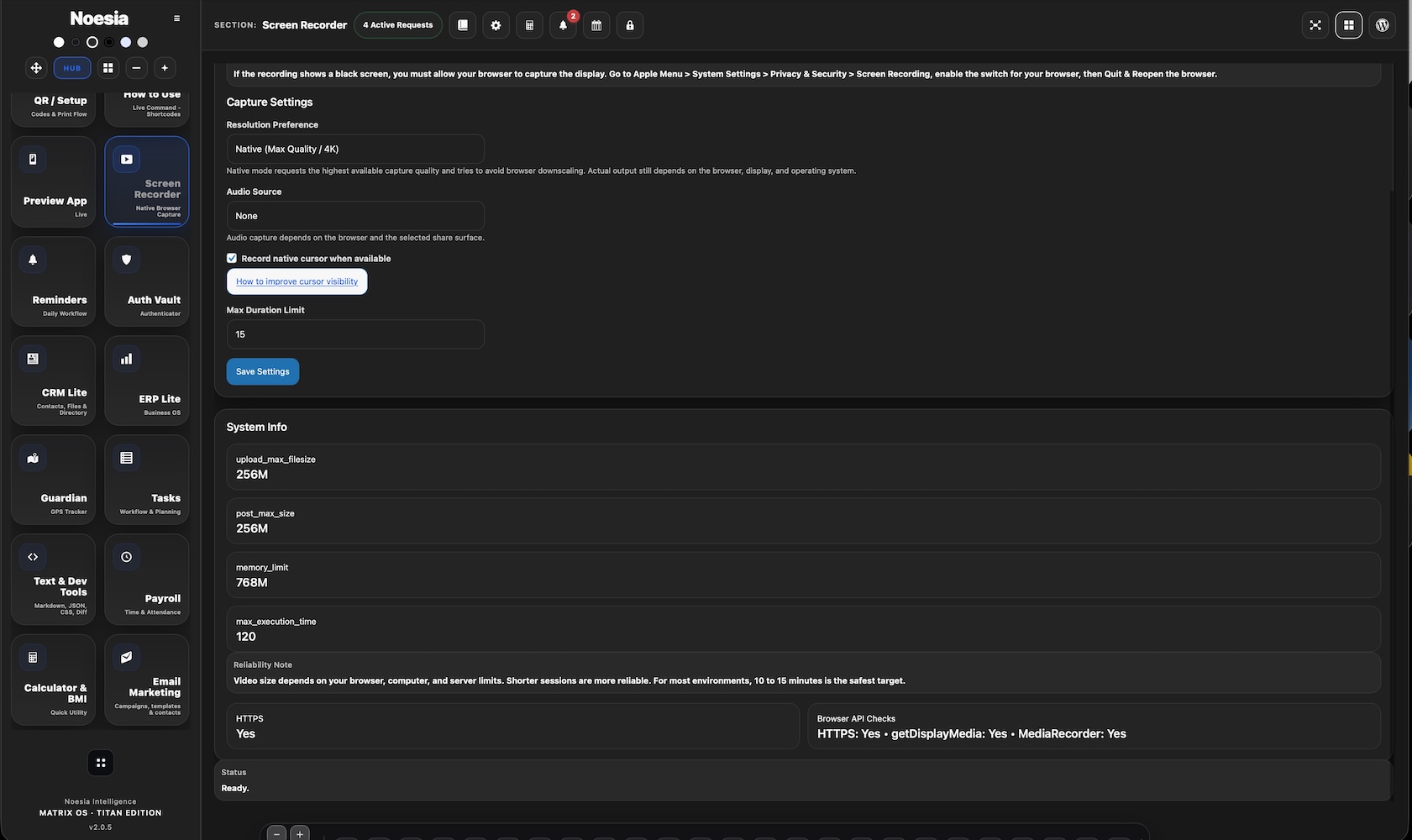

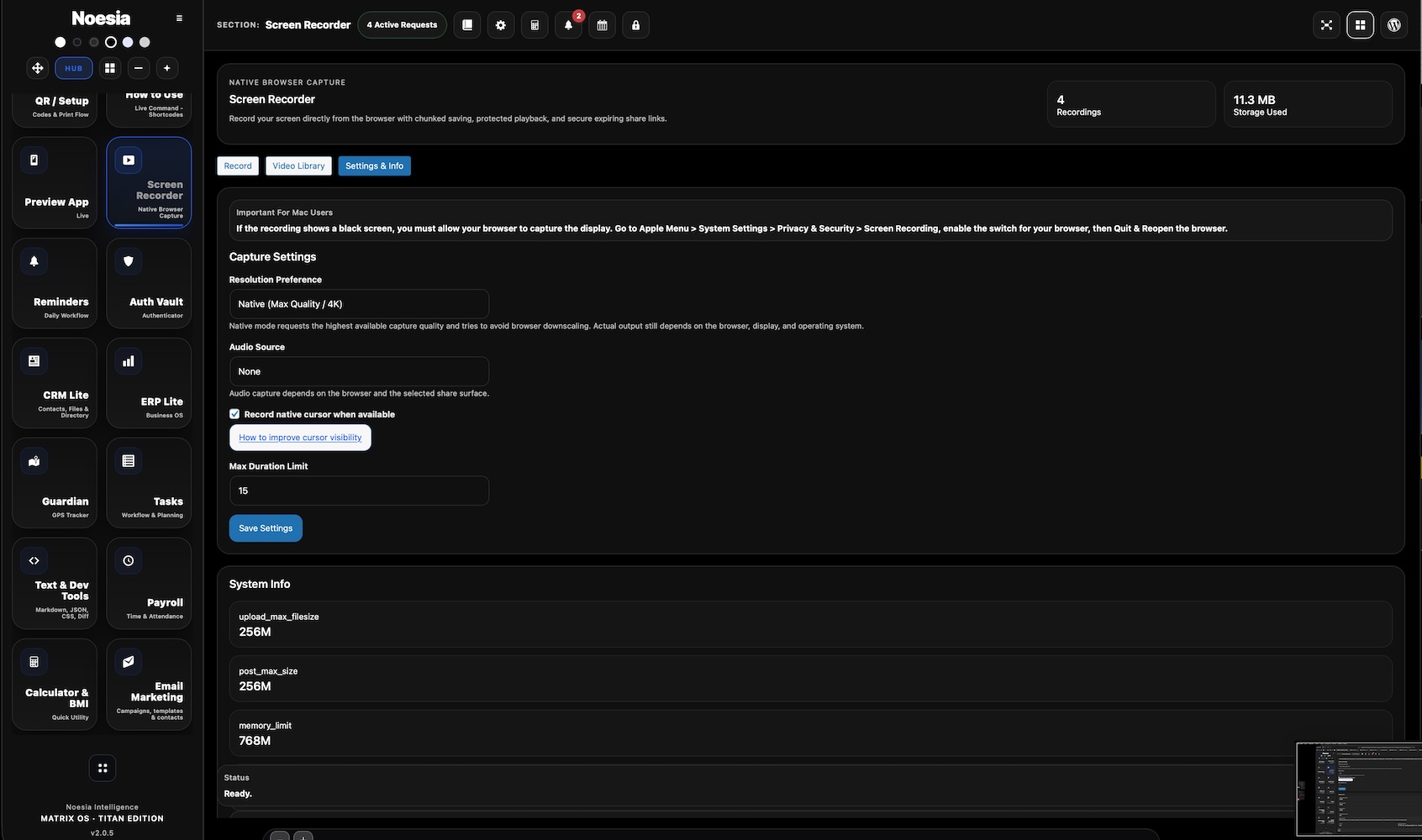

Capture Settings
Resolution, audio source, cursor visibility, and max duration are deliberately simple so the module stays effective and lightweight instead of turning into an overbuilt video suite.
System Info
Server limits and environment checks matter because screen recording is not just a visual feature; it is also a storage and execution feature that depends on real infrastructure.
Mac cursor notice
The module acknowledges platform-specific reality. Cursor style is not magically invented inside the video; it depends on the operating system’s own pointer behavior before capture starts.
Common Workflows
Real examples of how teams use Screen Recorder
Support proof for a bug or failure
Record the issue exactly as it appears, save it, copy a secure link, and send the proof to the person who must investigate without trying to explain a complex flow only with words.
Short internal training clip
Show a real process one time, record it cleanly, and reuse the clip for new staff instead of repeating the same live explanation again and again.
Operational audit evidence
Capture a workflow, settings state, or system condition at a precise point in time and preserve visual context before changes are made.
Client communication without uncontrolled tools
Instead of pushing sensitive visual material through random external services, teams can keep the capture inside their own platform and share it in a more controlled way.
Developer handoff
A short precise clip often removes several rounds of misunderstanding. The developer sees the exact click path, the exact moment of failure, and the exact screen state.
Before / after operational comparisons
Record a configuration or workflow before a change, then record the same path again after the change to compare outcomes with evidence instead of vague memory.
Troubleshooting
Common problems, likely causes, and the first fix path
Start Recording does nothing
Issue: the module stays idle when the user tries to start recording.
Why it happens: the browser may block screen capture, the environment may not be secure, or the required capture APIs are unavailable.
What to do: verify HTTPS, browser support, and screen-capture permissions first before assuming the module is broken.
The browser says screen capture requires HTTPS
Issue: recording cannot begin because the environment is not treated as secure.
Why it happens: secure screen capture is expected to run under HTTPS context.
What to do: move the installation to proper HTTPS and test again in a normal modern browser session.
The wrong surface was captured
Issue: the user expected a browser tab but captured a window or monitor instead.
Why it happens: the actual selected share surface came from the browser picker, not from wishful expectation.
What to do: stop the session, start again, and choose the correct tab, window, or monitor deliberately.
There is no audio in the final recording
Issue: the clip saved correctly but contains no microphone or system sound.
Why it happens: the chosen audio mode, browser capabilities, or share-surface restrictions may not support the intended audio capture.
What to do: review Audio Source settings, recheck browser permissions, and verify whether the chosen surface actually supports the audio path you want.
The cursor is too hard to see
Issue: the recording captures the native cursor but it is not obvious enough in the final clip.
Why it happens: the module does not fake an artificial cursor highlight inside the video.
What to do: adjust the operating system’s own cursor settings before recording, especially on macOS or Windows accessibility settings.
The session ends early
Issue: recording stops before the user expected it to stop.
Why it happens: the chosen max duration limit may have been reached, or the browser’s sharing state ended.
What to do: review the duration setting first and confirm the browser did not terminate screen sharing externally.
The library is empty after a session
Issue: the operator recorded something, but no saved item appears in the library.
Why it happens: the session may have failed during finalization, the save may not have completed, or an upload/storage issue occurred.
What to do: inspect status messages, check server limits, and retry with a shorter controlled capture to confirm the saving pipeline is healthy.
Copy Secure Link does not help the recipient
Issue: a shared link exists but the receiver cannot use it as expected.
Why it happens: the secure link may have limited access conditions, may have expired, or the receiver may be using the wrong environment.
What to do: regenerate the secure link when needed and confirm the intended recipient is opening the correct final link.
Recording quality feels lower than expected
Issue: the user chose a target profile but the resulting clip looks different.
Why it happens: actual browser-granted capture can differ from intended settings.
What to do: review Actual Capture diagnostics and treat those values as the truth of what was really recorded.
The module looks ready but backend feels disconnected
Issue: the interface loads, yet save, list, or finalization behavior feels incomplete.
Why it happens: the local AJAX owner, storage path, or backend service layer may not be fully ready in the current build or environment.
What to do: refresh the module, inspect errors, and verify the module’s assets, AJAX owner, and storage layer are present and healthy.
FAQ
Fast answers before opening support
Is Screen Recorder a Pro module?
Yes. Screen Recorder belongs to the Pro layer.
Does it record directly in the browser?
Yes. The module is built around secure browser-based capture rather than a separate heavy desktop tool.
Can I capture only one browser tab?
Yes. Depending on the browser picker, the user can choose a browser tab, a window, or a full monitor surface.
What audio modes are available?
None, Microphone, System Audio, and Microphone + System Audio.
Can I choose a target resolution?
Yes. The module includes practical choices such as Native, 720p, and 1080p.
Can I control whether the cursor is visible?
Yes. Cursor capture can be enabled or disabled as part of the settings workflow.
Can I limit recording length?
Yes. A maximum duration limit can be chosen to keep recordings disciplined and storage-aware.
Can I preview and manage recordings later?
Yes. The Video Library is designed exactly for that.
Can I download the original file?
Yes. Download Original is part of the operational library actions.
Can I create a secure share link?
Yes. The module supports secure-link sharing for controlled access.
Does the module show environment readiness?
Yes. It includes system and browser readiness information so operators can diagnose constraints before blaming the workflow.
Is this intended as a full video editor?
No. It is a practical secure capture and evidence workspace, not a giant cinematic editing studio.
The Noesia Matrix
⚙️ THE NOESIA MATRIX: KERNEL FABRIC ARCHITECTURE
The Noesia Matrix is the shared architecture language and module fabric behind Noesia Smart Waiter. This module is not just a static page; it sits inside an isolate-first modular system designed for shell-driven navigation, clean section ownership, extensible widget zones, and future-safe expansion.
The architecture direction is intentionally high-control: modular ownership, isolated assets, lazy-ready behavior, clean settings flow, predictable prefixes, maintainable service boundaries, and enterprise-safe discipline around structure, security, and extensibility. Noesia transcends the definition of a standard WordPress plugin, operating as a robust platform built upon enterprise-grade Service-Oriented Design.
Here is how the core engine is designed to minimize bloat, maximize stability, and keep the experience consistently fast and responsive:
Event-Driven Inversion of Control (IoC): The platform follows an IoC pattern via a decoupled Event Bus. The central core acts as a “Logic-Less Host” (Blind / DUMMY Kernel). It does not tightly bind itself to module internals; modules announce their own presence, capabilities, and state through controlled registration flows.
The Micro-Frontend Paradigm (MFE): The UI is not a giant monolithic block. Each application behaves as an independent Micro-Frontend with its own dynamic assets, specialized logic, and UI contracts.
Strict Asset Isolation & Lazy-Loading: Resource usage stays disciplined. A module’s CSS, JavaScript, and data components are loaded only when the user reaches or interacts with that specific application surface.
Decoupled Registry Pattern: The dynamic discovery layer allows applications to be added or removed quickly without rewriting core logic. If one application encounters an issue, the architecture is designed to contain that impact instead of cascading it across the platform.
Enterprise-Grade Security & Stability: The platform is reinforced with strict input sanitization, dynamic registry routing, and defensive safety gates across the stack. The data layer and the user interface remain deliberately separated for maintainability and risk control.
The Result: A scalable hospitality and clinical operating system engineered to manage mission-critical workflows securely — from intimate cafés to high-traffic venues and sensitive medical environments.
Support
Support, escalation, and what to send first
Check first
- Confirm the plugin version.
- Confirm the module name is Screen Recorder.
- Check whether the problem is about capture, saving, sharing, or environment readiness.
- Review the troubleshooting section above first.
Collect before opening a ticket
- One clear screenshot of the issue.
- The exact visible error or wrong state.
- Short steps to reproduce.
- Whether the issue happens always or only sometimes.
Open support only after the fast checks above
When you open a ticket, include one clean screenshot, the exact visible error text or wrong result, short reproduction steps, and whether the problem is constant or intermittent. That reduces back-and-forth and speeds up resolution.
